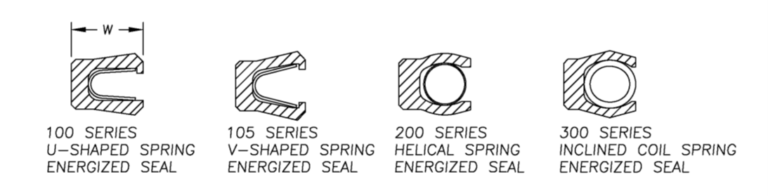

Drawings of 100 series U-shaped, 105 series V-shaped, 200 series helical and 300 series inclined coil spring energized seals

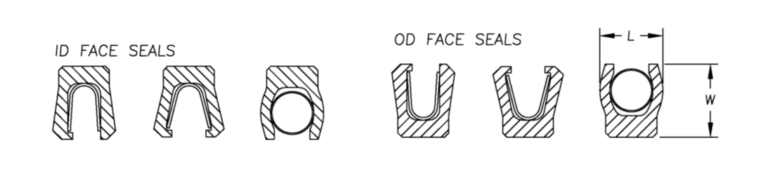

Cross-section drawings of ID face seals and OD face seals with U-shaped, V-shaped and helical spring energizers

HARDWARE NOMECLATURE

Rod/Rotary Seals

Technical drawing of OD/ID face seal housing groove with W, J, K, L and E dimensions

Bore Seals

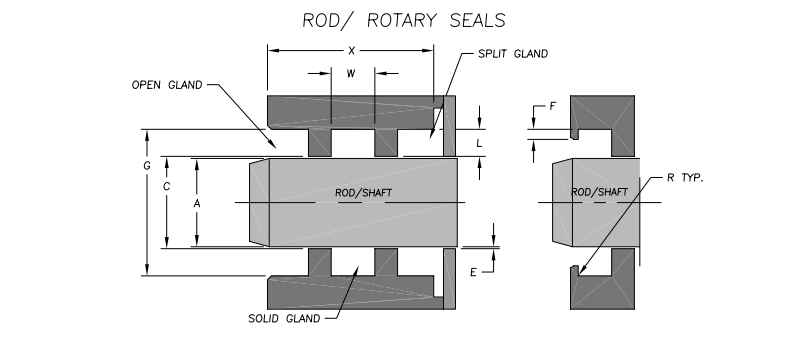

Technical drawing of rod and rotary seal gland showing solid gland, split gland and open gland dimensions

OD/ID Face Seals

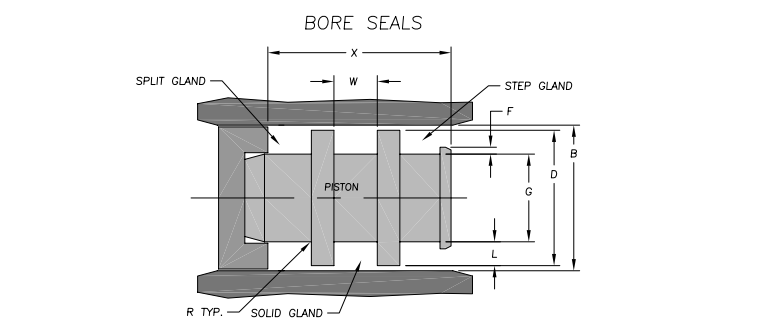

Technical drawing of bore seal piston gland showing split, solid and step gland dimensions
